RF Explorer Spectrum Analyzer

RF Explorer is the latest breakthrough device in low-cost, RF spectrum analysis. It operates both as a standalone, handheld RF spectrum analyzer and also interfaces with a PC running more sophisticated data analysis software. There are several models in the RF Explorer series of RF spectrum analyzers that span different frequency ranges -- from 50 KHz up to 6100 MHz. Don''t let the price fool you -- the performance of these small, affordable devices compares favorably to more expensive and bulky test equipment.

For Professionals, Aspiring Professionals & Amateurs

RF Explorer is the latest breakthrough device in low-cost, RF spectrum analysis. It operates both as a standalone, handheld RF spectrum analyzer and also interfaces with a PC running more sophisticated data analysis software. There are several models in the RF Explorer series of RF spectrum analyzers that span different frequency ranges -- from 50 KHz up to 6100 MHz. Don''t let the price fool you -- the performance of these small, affordable devices compares favorably to more expensive and bulky test equipment.

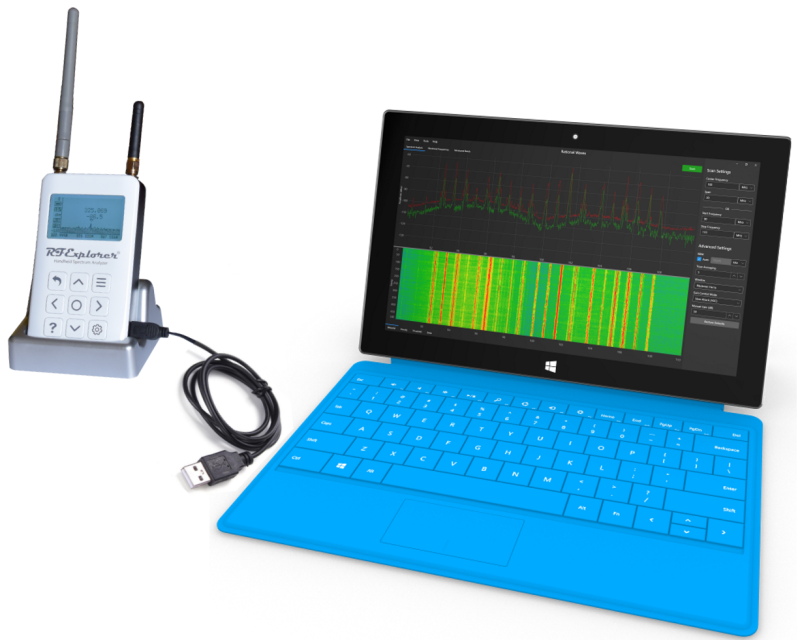

Rational Waves RF Spectrum Analyzer Software

From the RF Explorer team in Spain:
"With so many different RF application fields, budget ranges and specific needs, it is an art to design the best possible match for everyone's needs with best quality and limited cost. We are delighted to offer a broad product range of tools, adjusted over more than 10 years of team dedicated R&D, careful listening to customer needs and feedback, and strong research on the latest technologies."

Below we list examples of the "PLUS SLIM" and "Standard" models. For the most up-to-date listing of models and specifications please visit the official RF Explorer site.

RF Explorer Model Map

RF Explorer Model Map

Features:

  • Pocket size and light weight.
  • Solid aluminum metal case.
  • Graphics LCD 128x64 pixels, great visibility outdoors.
  • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes.
  • Lifetime free firmware upgrades available, open to community requested features.
  • High capacity Lithium-ion polymer internal battery for 16hs+ of continuous run, rechargeable by USB.
  • Can interface to Windows and MacOS laptops, and Android devices running data acquisition and analysis software.
  • Wide band coverage includes: all popular sub-1Ghz ISM bands, 2.4x GHz ISM band (Wi-Fi, bluetooth, Zigbee), 5.x GHz ISM band (Wi-Fi) -- with maximum frequency reaching to 6100 MHz.

Price Comparison Of RF Explorer Models

Below are the manufacturer's recommended retail prices (MSRP). The RF Explorer brand is available online from a world-wide network of distributors.

PLUS-SLIM Models


Model
Frequency Range

6G Combo+
$395 USD
50 KHz-6.1 GHz

4G Combo+
$295 USD
50 KHz-4 GHz

ISM Combo+
$219 USD
50 KHz-2.5 GHz

WSUB1G+
$169 USD
50 KHz-960 MHz

Standard Models


Model
Frequency Range (MHz)

6G Combo
$365 USD
4850-6100
15-2700

ISM Combo
$185 USD
240-960
2350-2550

3G Combo
$269 USD
15-2700
240-960

WSUB1G
$139 USD
240-960

2.4G
$135 USD
2350-2550

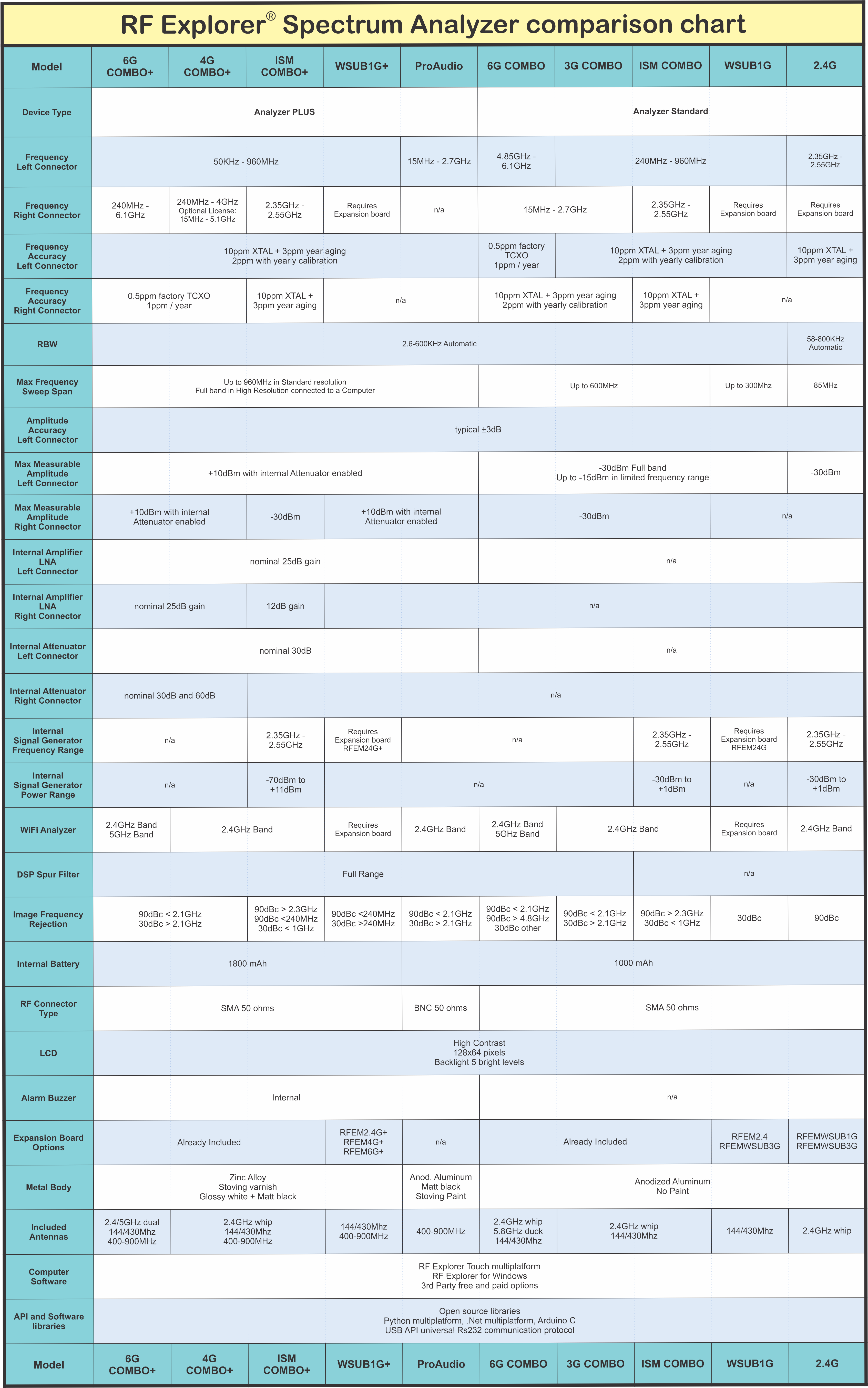

Comparison Chart

Download comparison chart in PDF format

RF Explorer Model Map
